Warthog Armoured All Terrain Repair Recovery Vehicle (RRV)

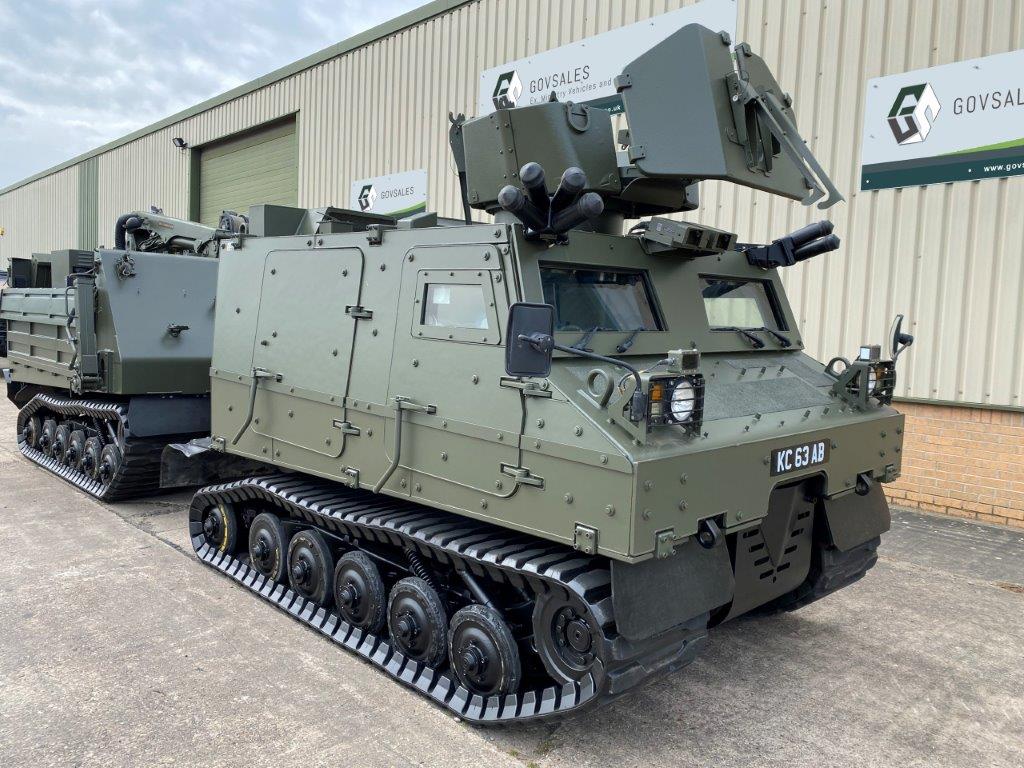

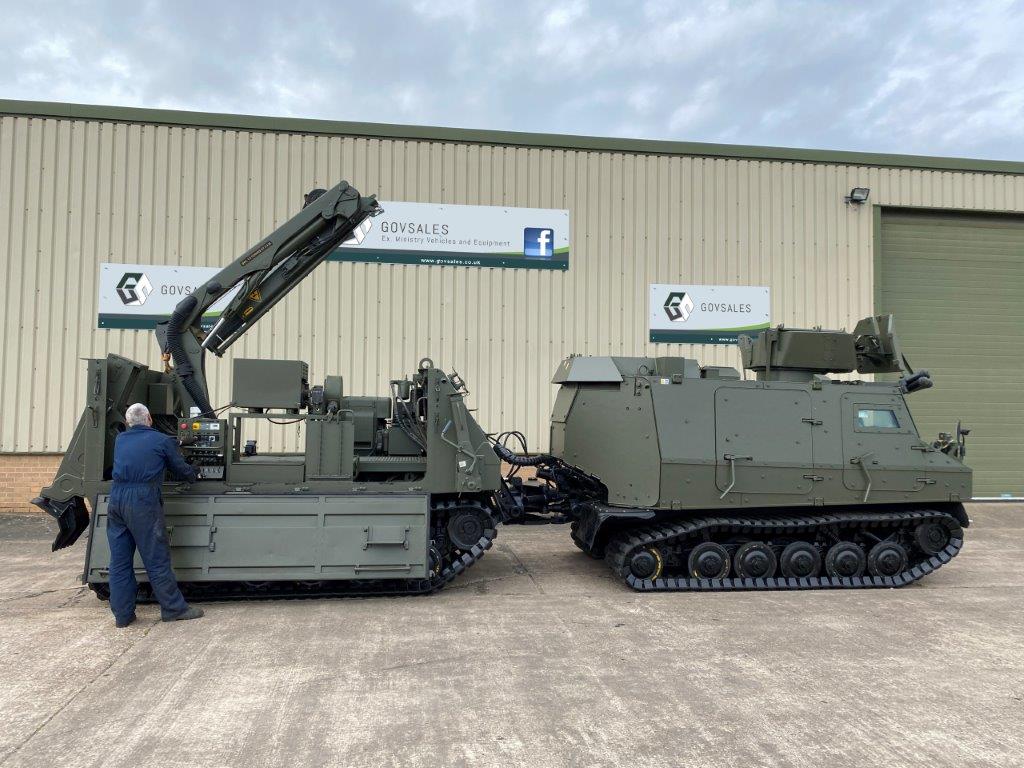

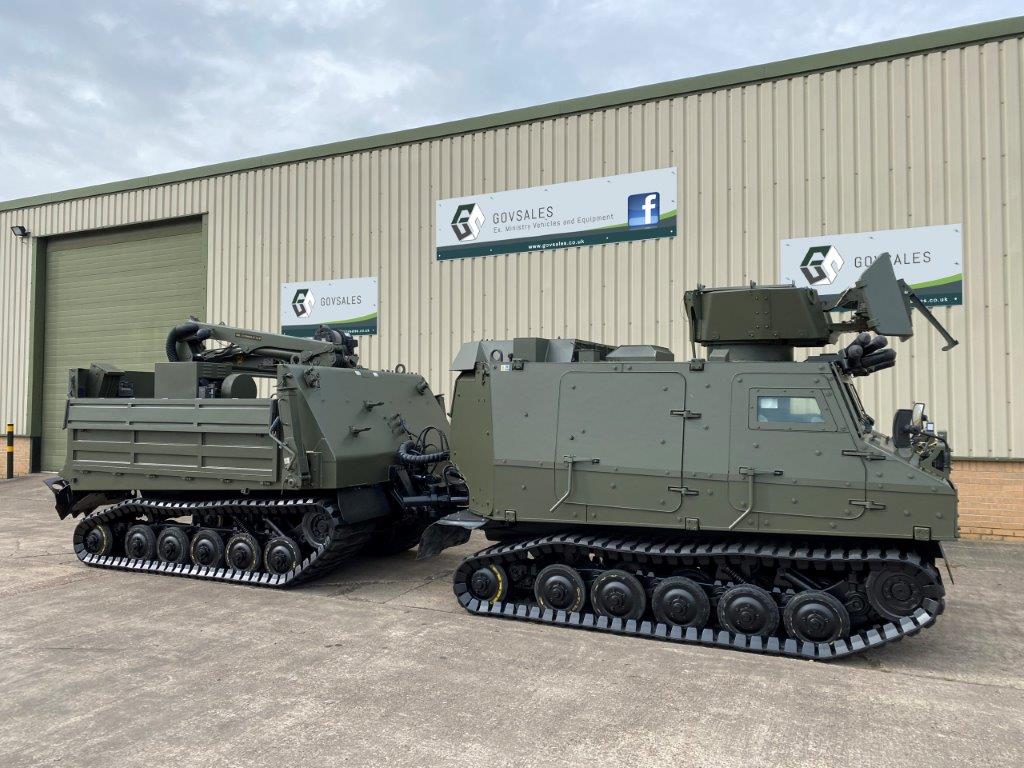

The Repair Recovery Variant (RRV) is to serve as a mobile heavy aid workshop to facilitate repairs and maintenance in the field. The RRV consists of a typical front cabin configuration and a flat bed rear cabin.

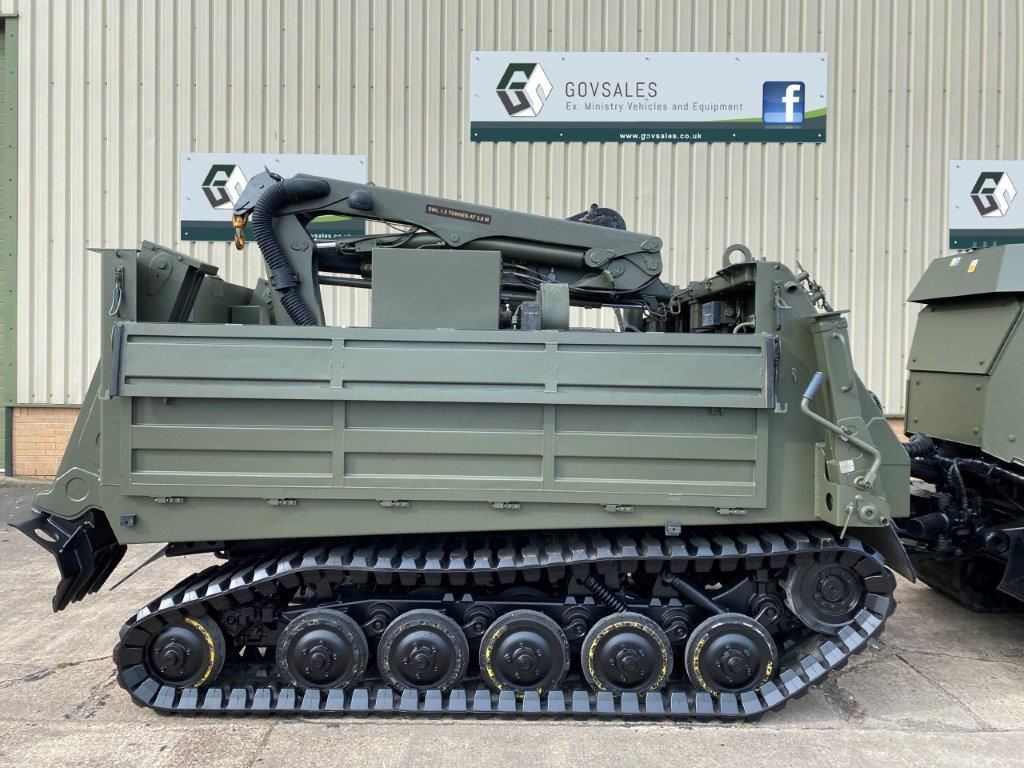

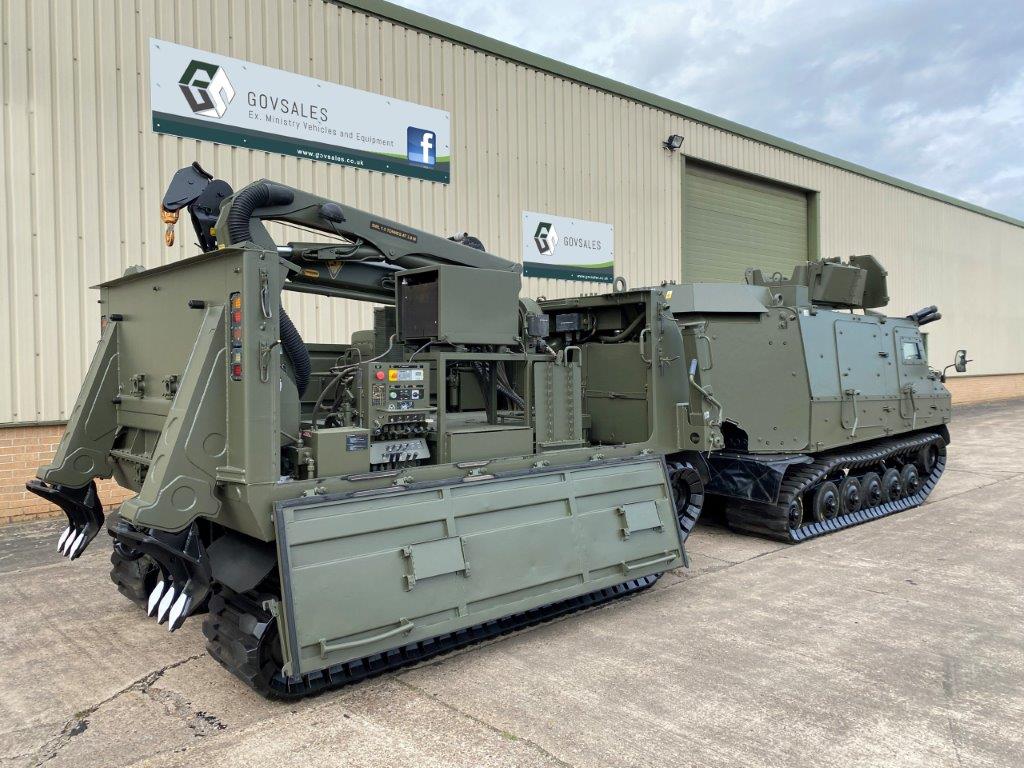

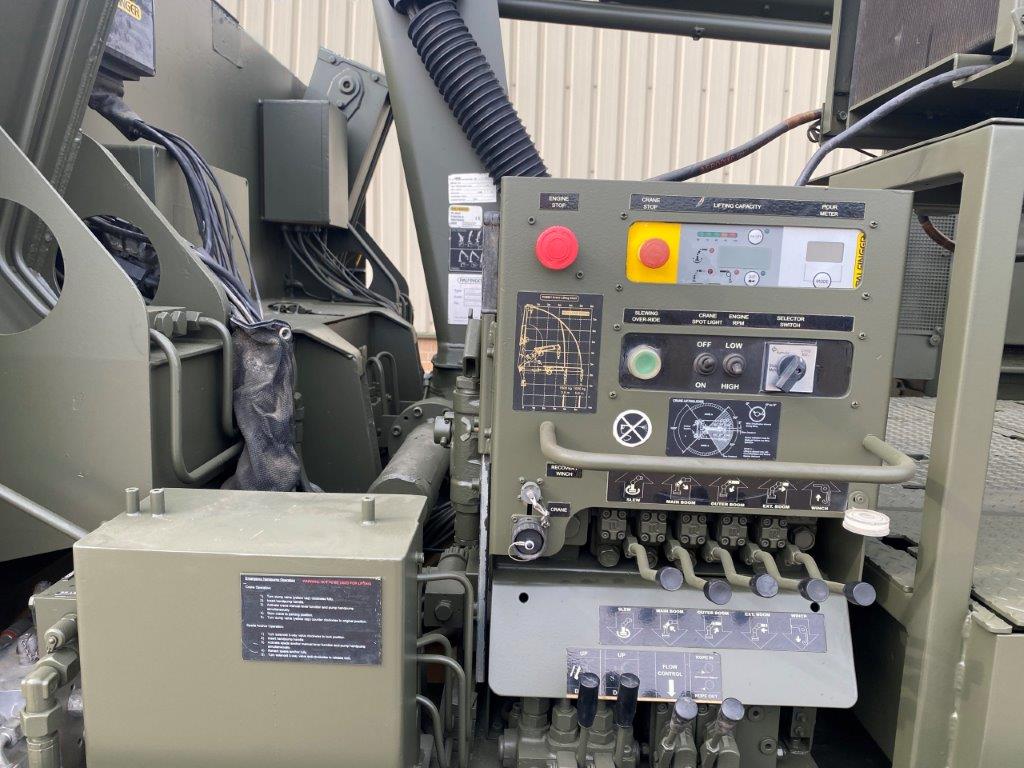

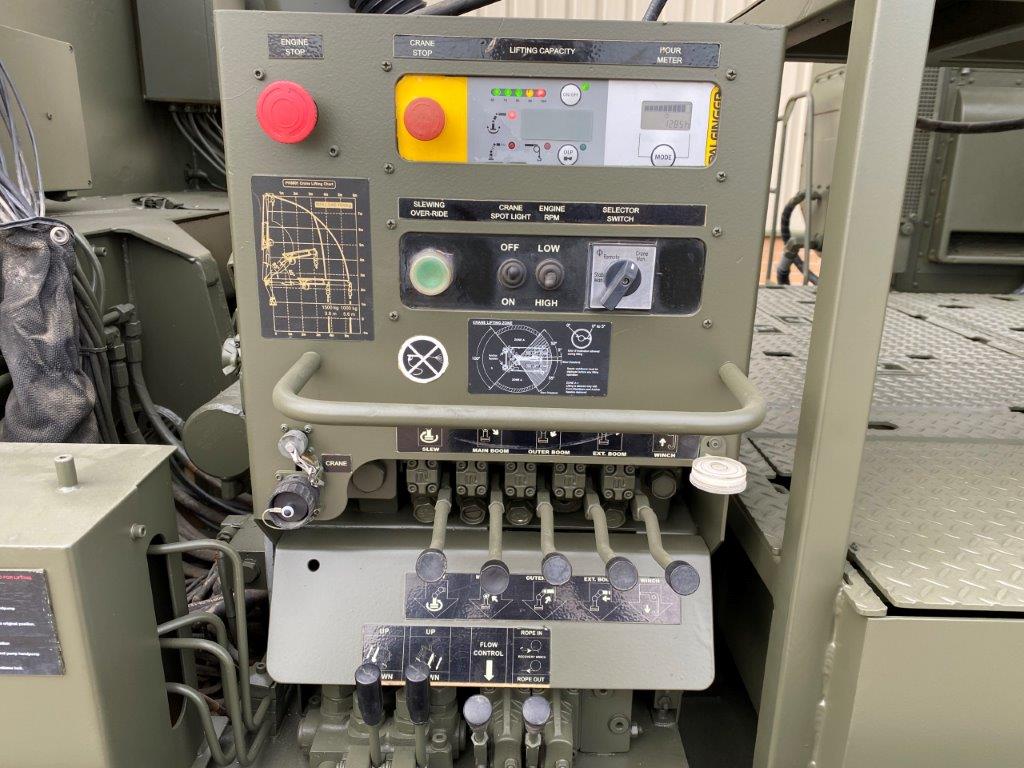

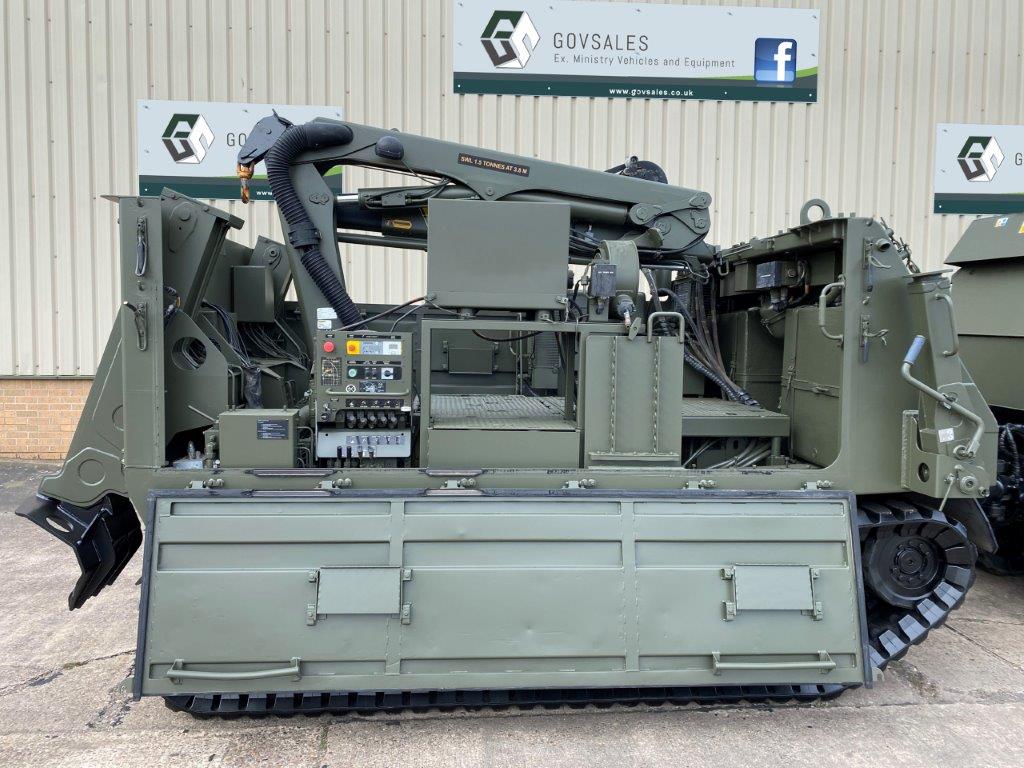

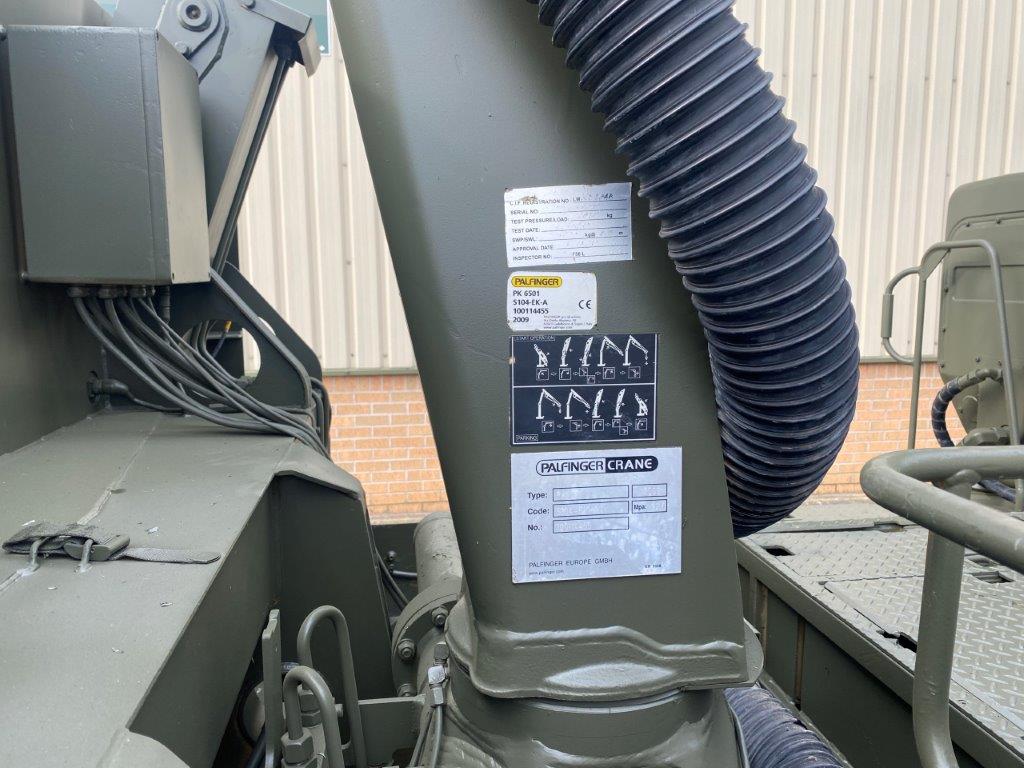

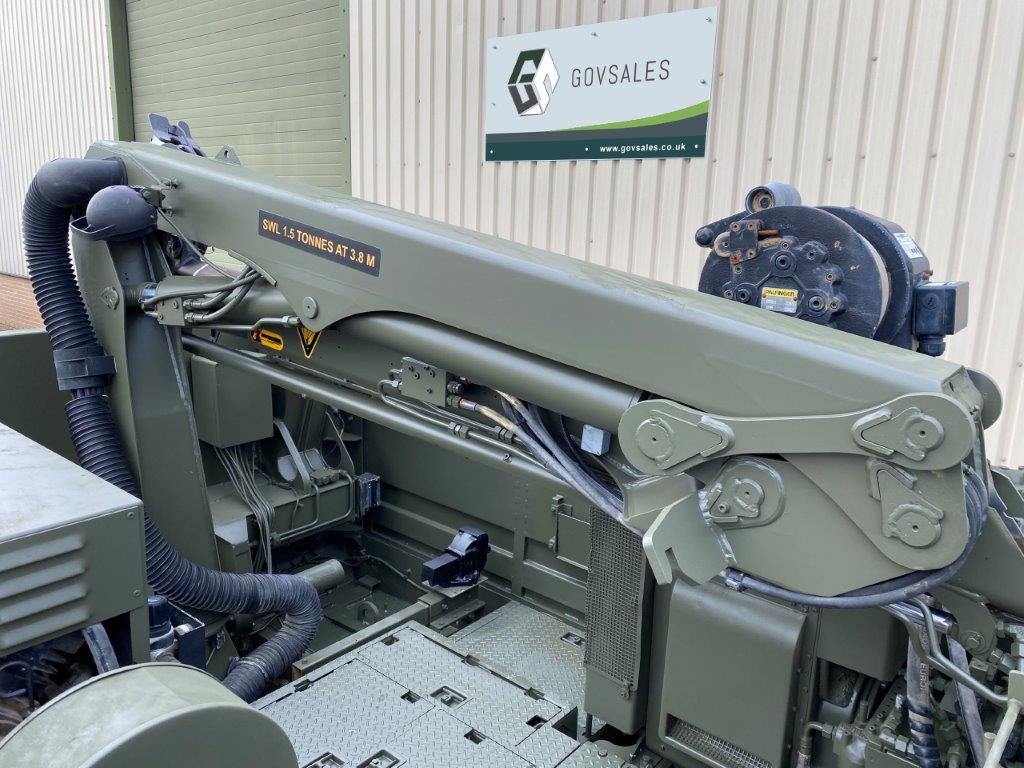

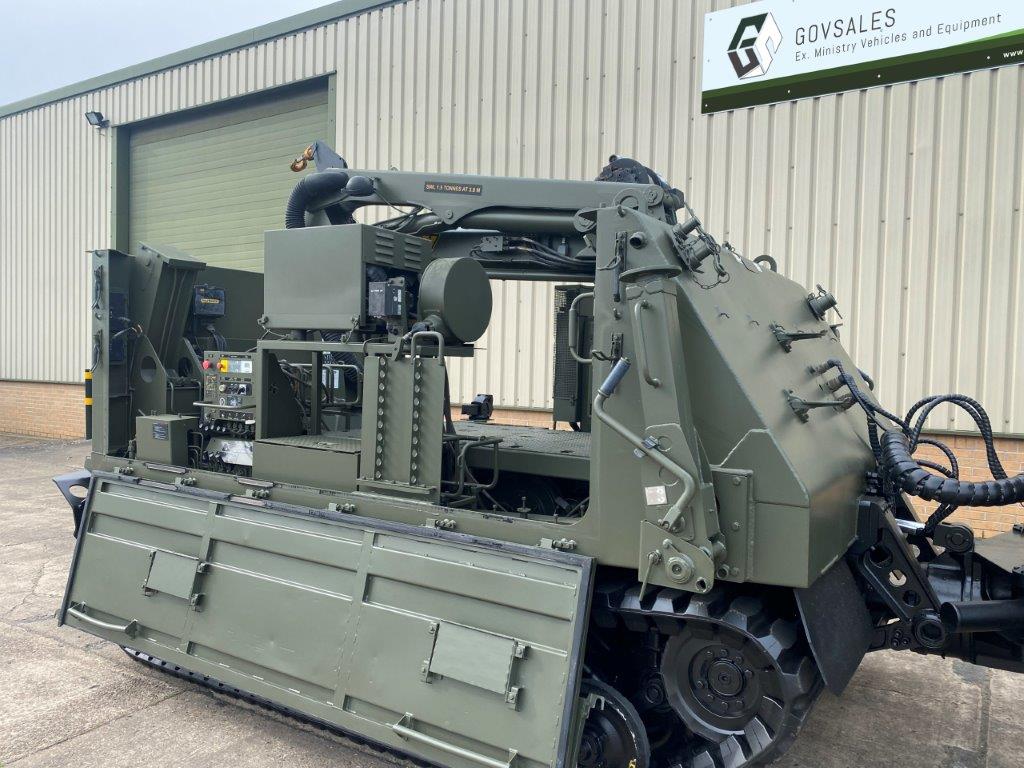

Onboard equipment on the flatbed consists of a Palfinger 6mT crane mounted on a subframe. The RRV is also equipped with a constant pull winch which is capable of providing a maximum 10T pulling force. The subframe carries a pair of anchor spades which help to support the vehicle during lifting or winching operations. A 23 CFM air compressor with 2 hose reels is also provided to allow power tools to be used. Finally a workbench and vice unit and storage units are carried to facilitate maintenance tasks to be carried out.

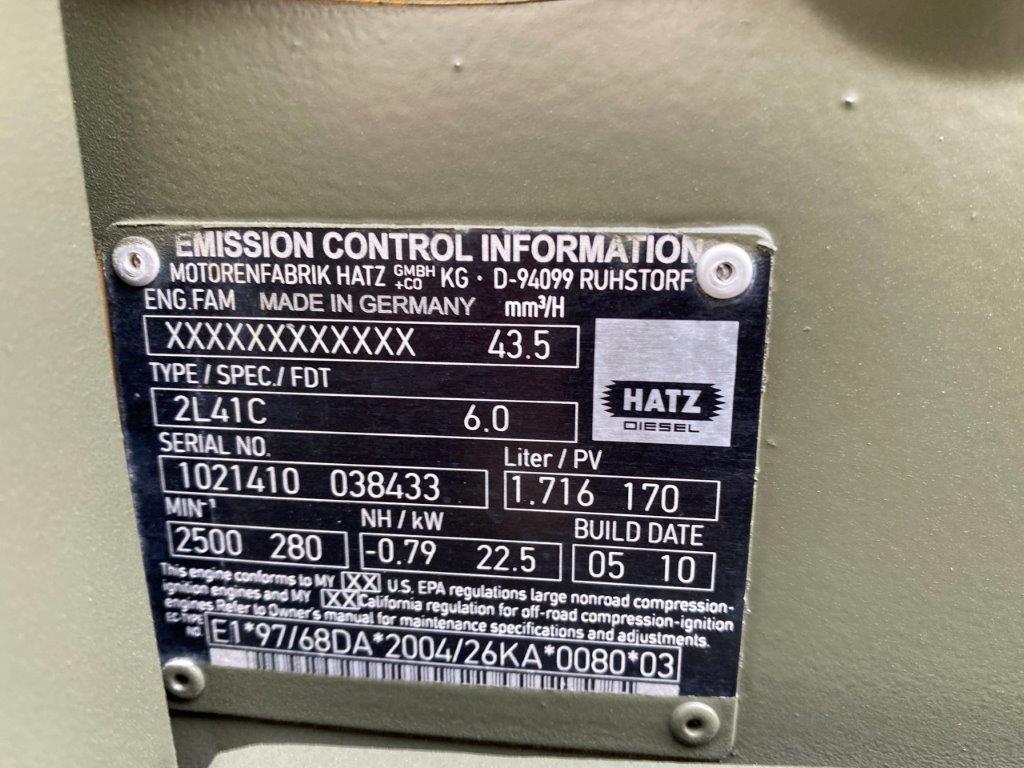

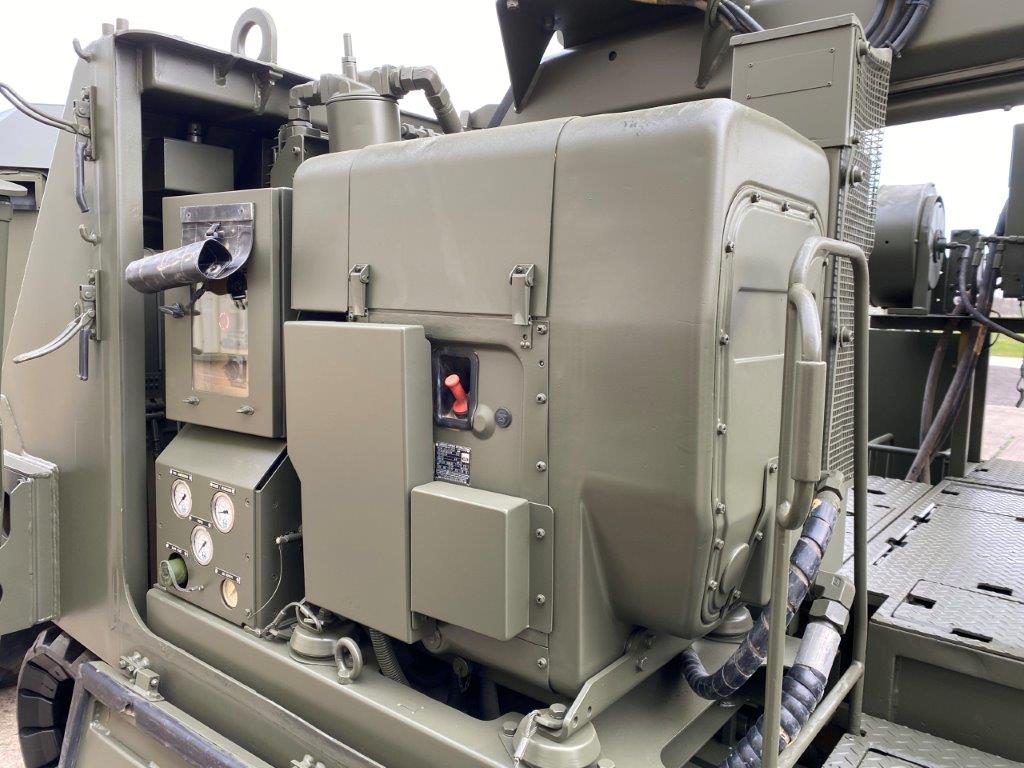

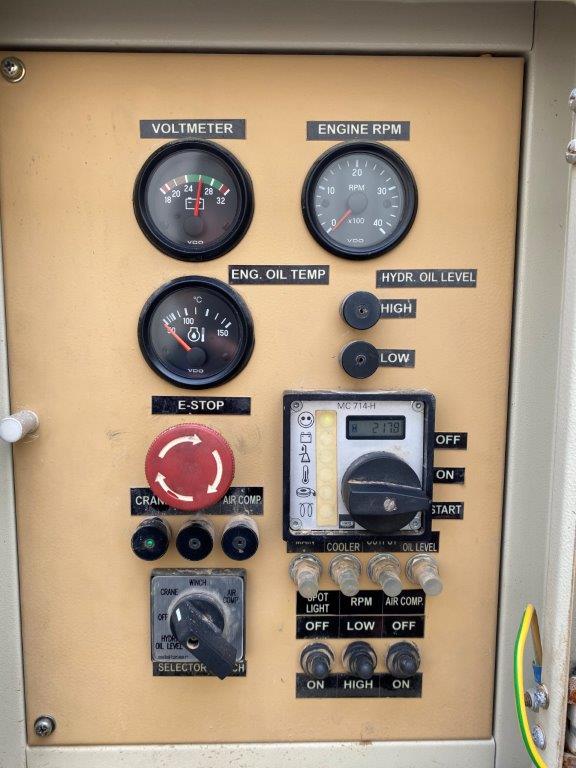

In addition a Hatz engine is included to provide both electrical power and hydraulic power to various subsystems.

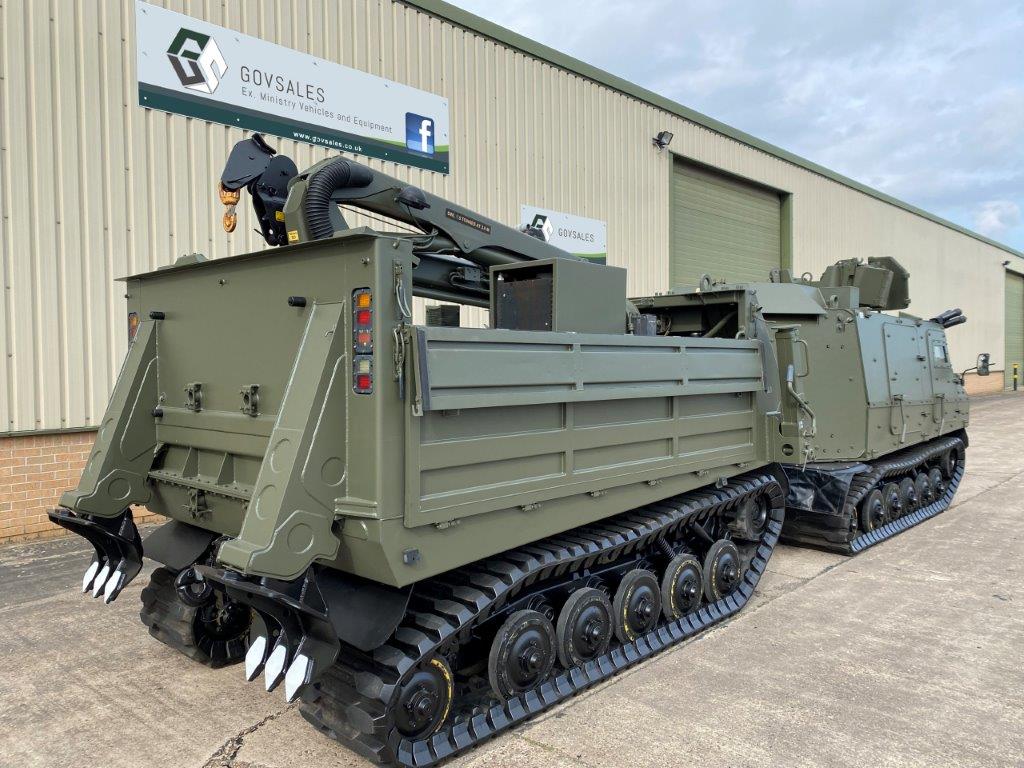

Body design - Front and rear module, high strength steel with protection system

Performance:

  • Cruising Range - 400 Km
  • Maximum road speed - 60 Km/hr
  • Fuel consumption - 1.10 litres/km
  • Maximum gradient - 60%
  • Maximum side slope - 30%
  • Maximum vertical obstacle - 0.8M
  • Trench - 1.5M
  • Steering Radius - 10M
  • Front towing attachment ( max towing load) 30 Tonnes
  • Rear towing pintle (max towing load) 30 Tonnes
  • Maximum fording depth 1.5M
  • Engine Type - Caterpillar C7 350 BHP, 6 cylinder, 4 stroke turbo charged
  • Transmission Type - Allison MD3500 fully Automatic 6 speed
  • Cooling system - Liquid and air cooled
  • Air conditioning is provided for the front module

    A heating system is provided in the front and rear module designed to provide heating between 10-40 degrees

    We also have available in stock the Troop carrier variant, Command variant and Ambulance Variant totalling 75 vehicles as well as a full spares package

    Like on Facebook
    VIDEOS (if available)
    CATEGORY Armoured Fighting Vehicles (AFV's)
    MANUFACTURER ST Kinetics
    ENGINE Caterpillar C7 350 BHP 6 Cylinder Turbo Charged
    GEARBOX Allison MD3500 fully automatic 6 speed
    BRAKES
    STEERING Centre Point Articulation
    TYRES Soucy Tracks and wheels
    MAXIMUM LOAD
    ELECTRICS 24 volts
    L x W x H 8.60M x 2.30m x 2.90m
    GROSS WEIGHT
    HOURS / MILEAGE
    DATE INTO SERVICE 2010-2011
    YEAR OF MANUFACTURE 2010-2011
    QTY AVAILABLE 0
    EXPORT REQUIREMENTS ...more SIEL Licence Required
    PRICE This email address is being protected from spambots. You need JavaScript enabled to view it.
