Warthog Armoured All Terrain Command Variant - MoD Ref: 50487

Click for similar items which may be of interest

Warthog Armoured All Terrain Command Variant - Govsales of ex military vehicles for sale, mod surplus

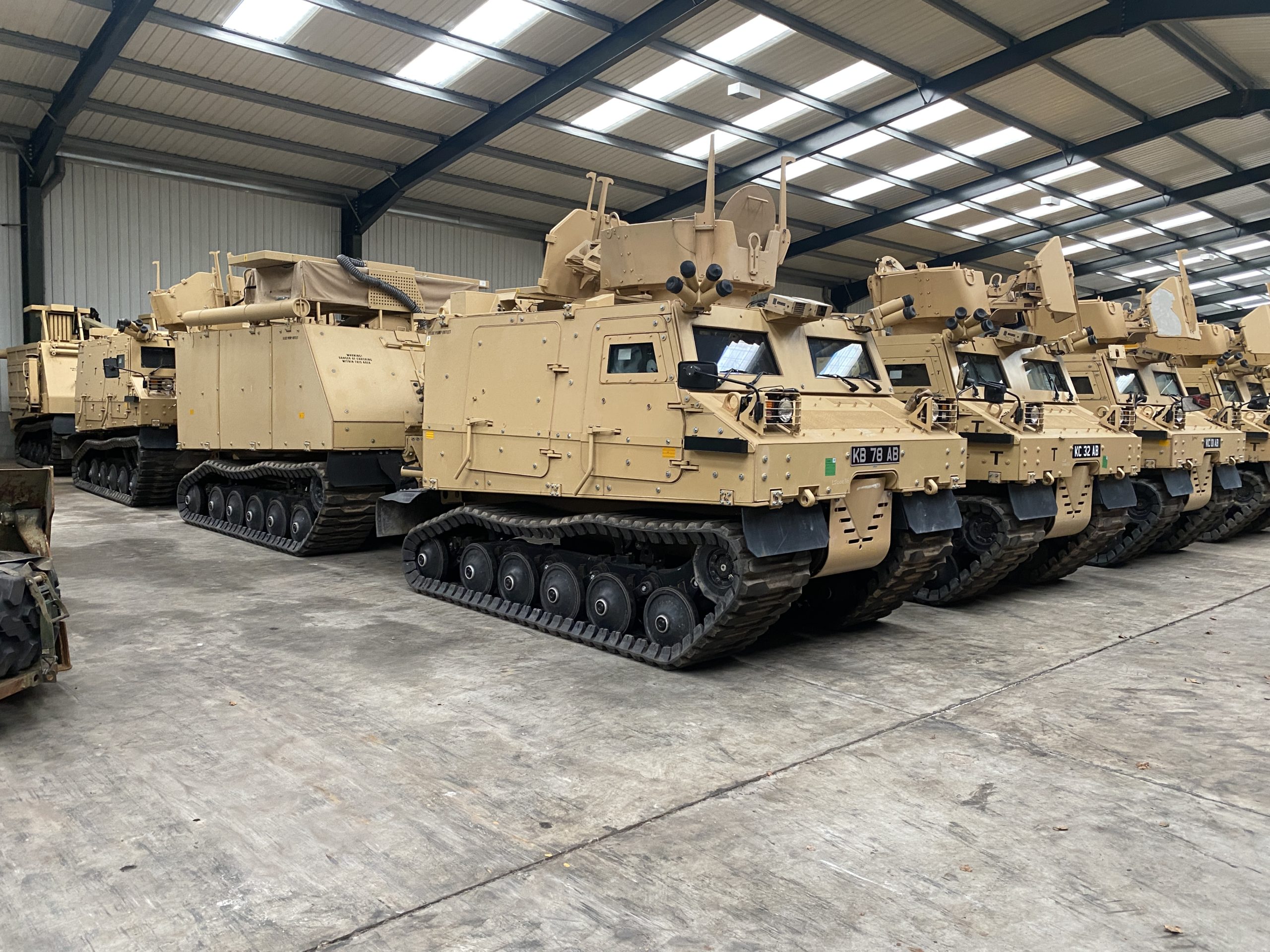

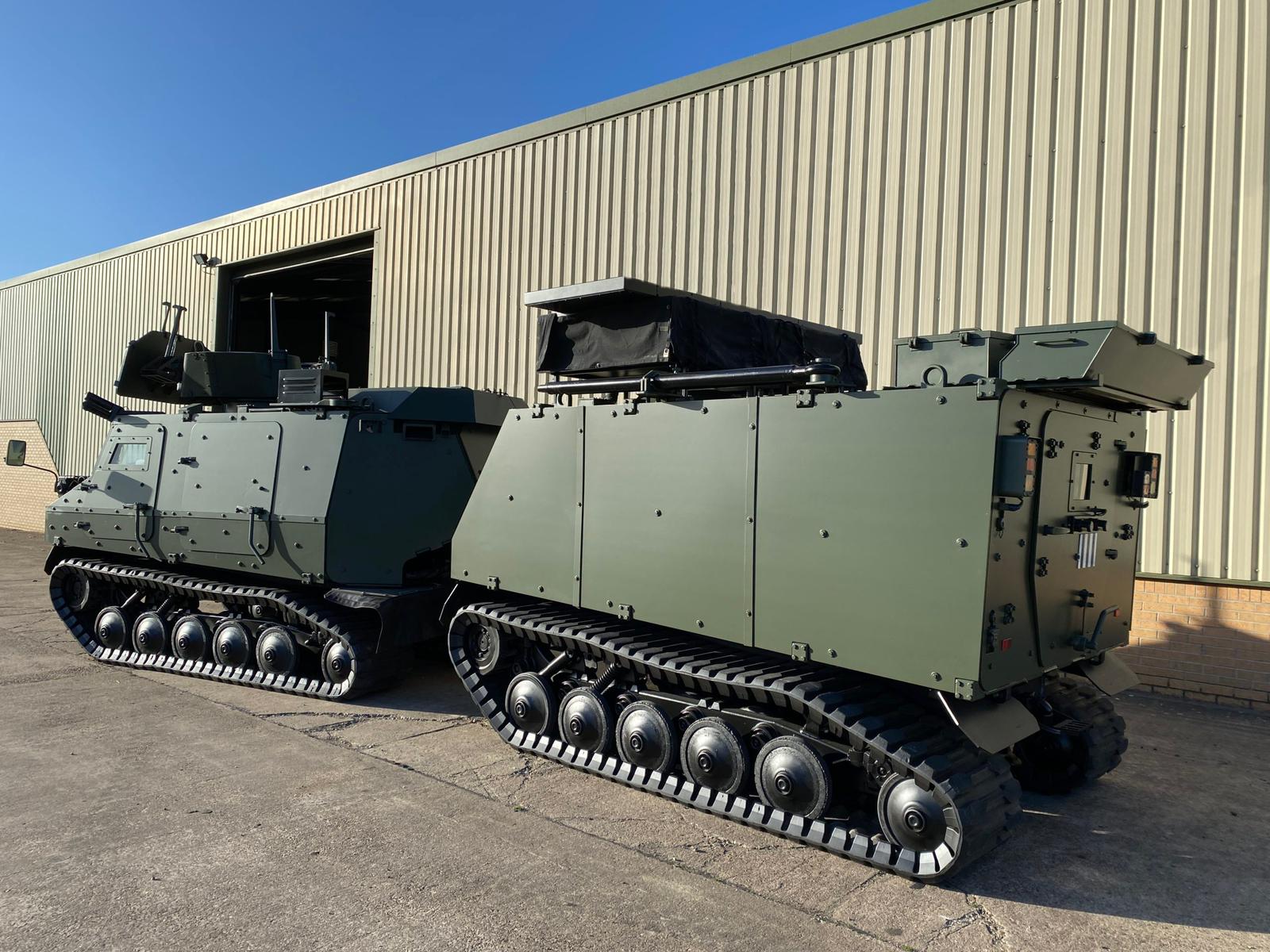

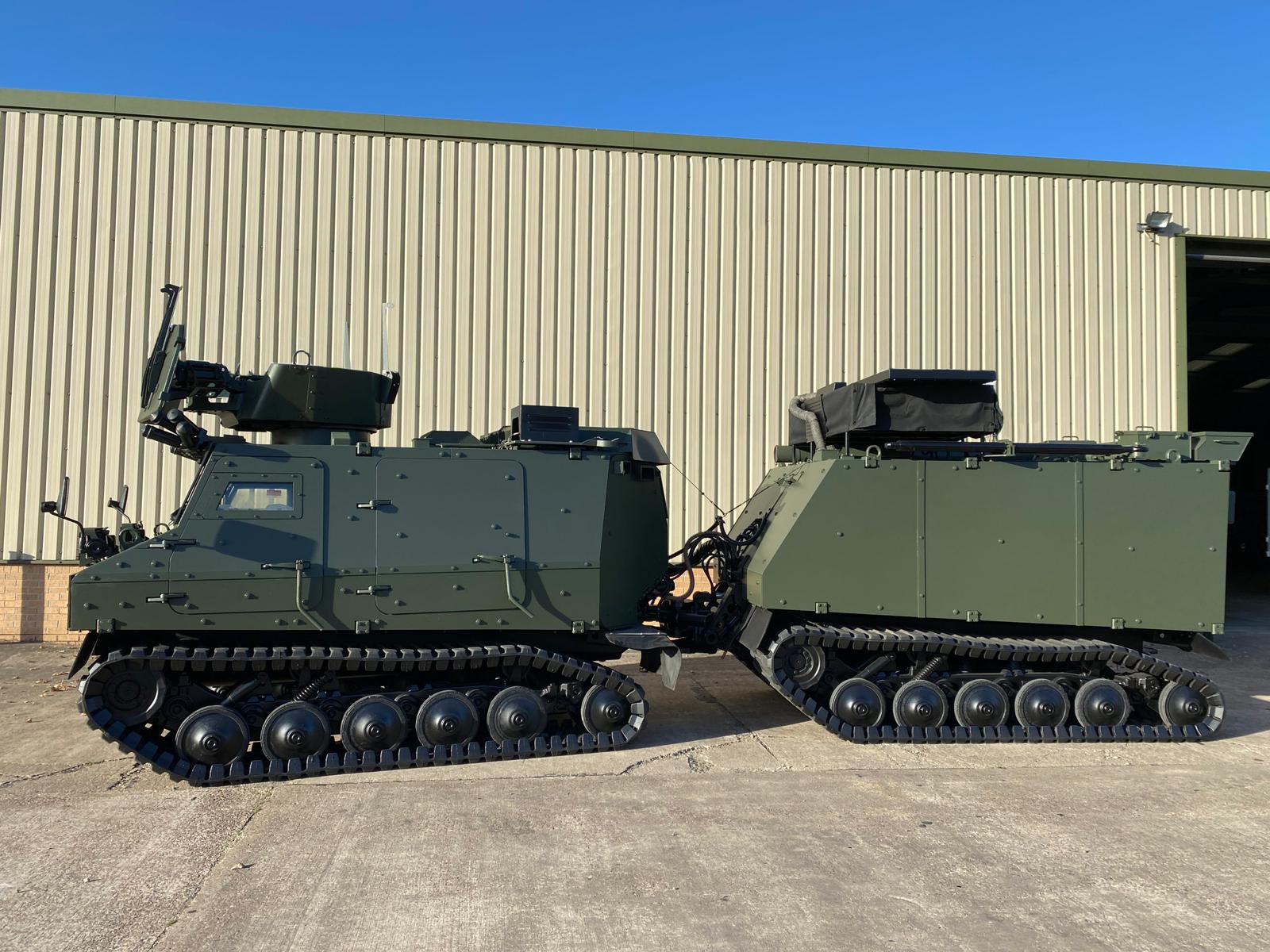

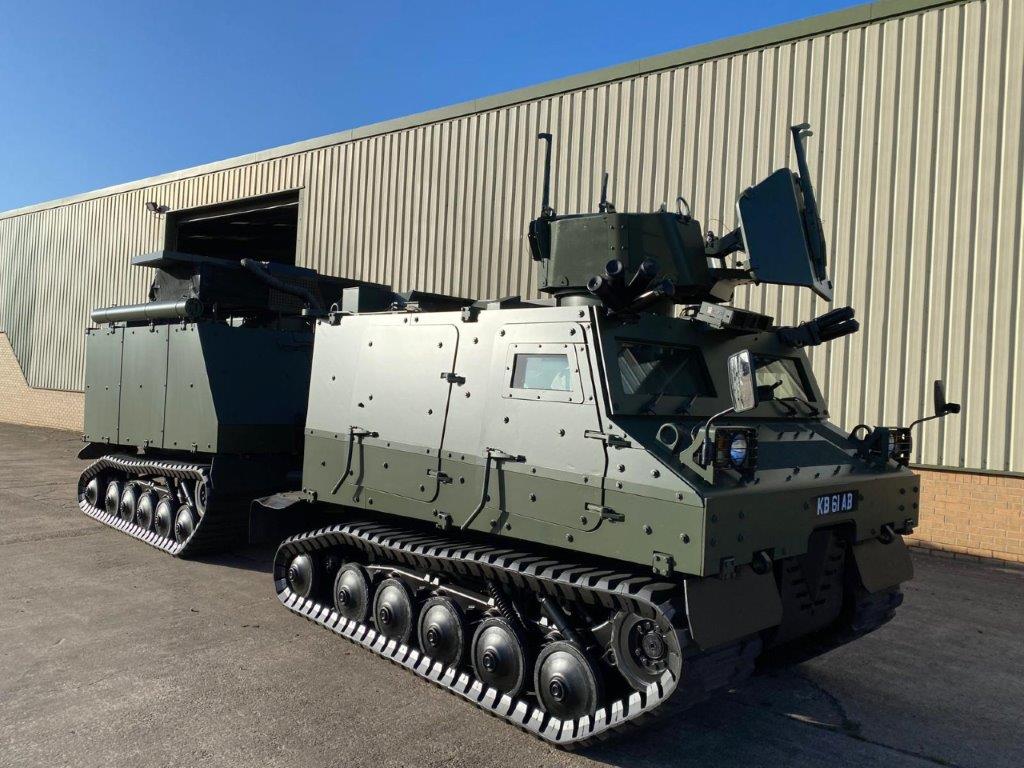

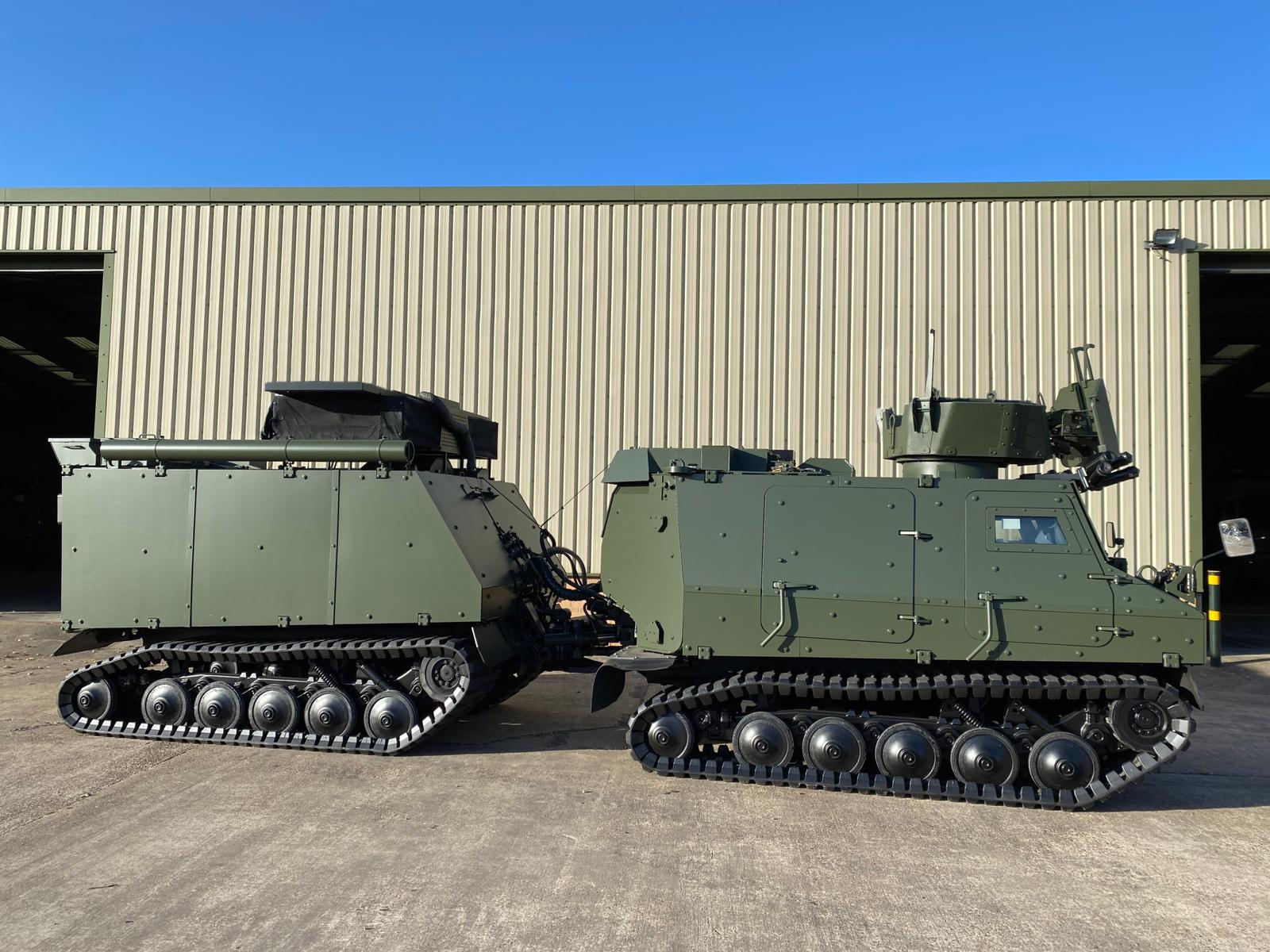

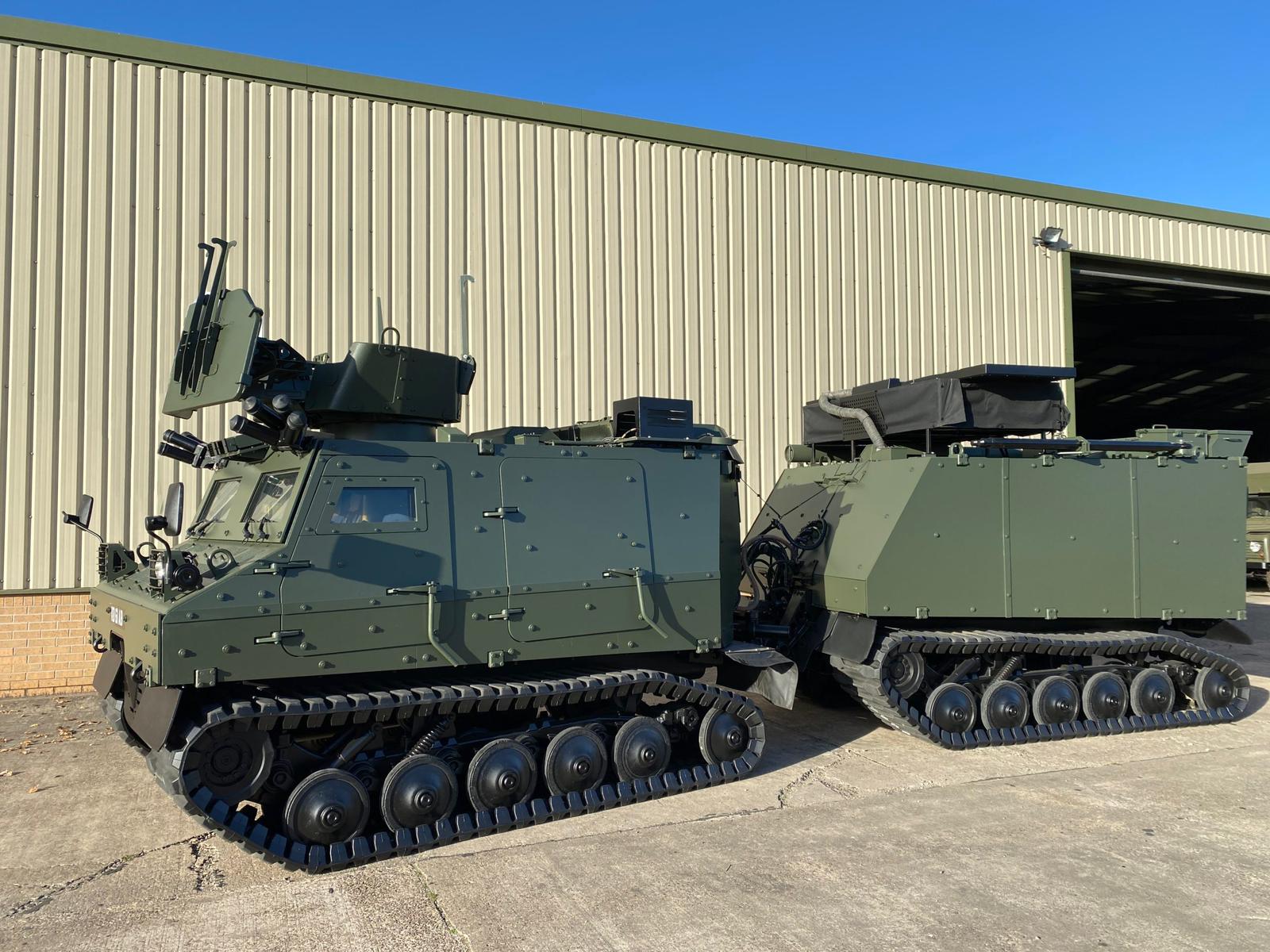

Warthog Armoured All Terrain Command Variant (CV)

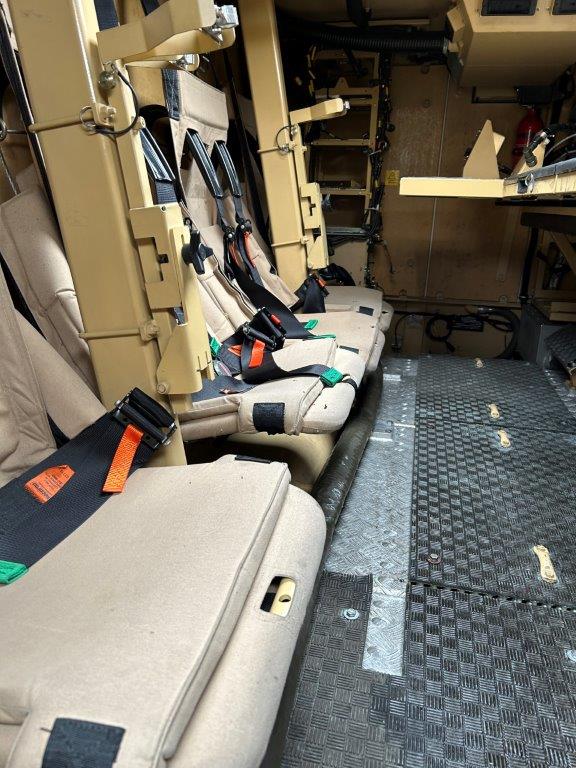

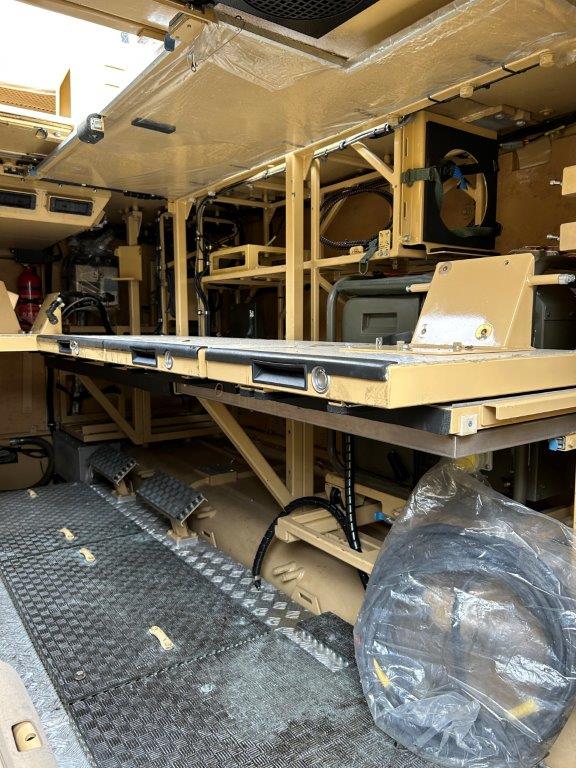

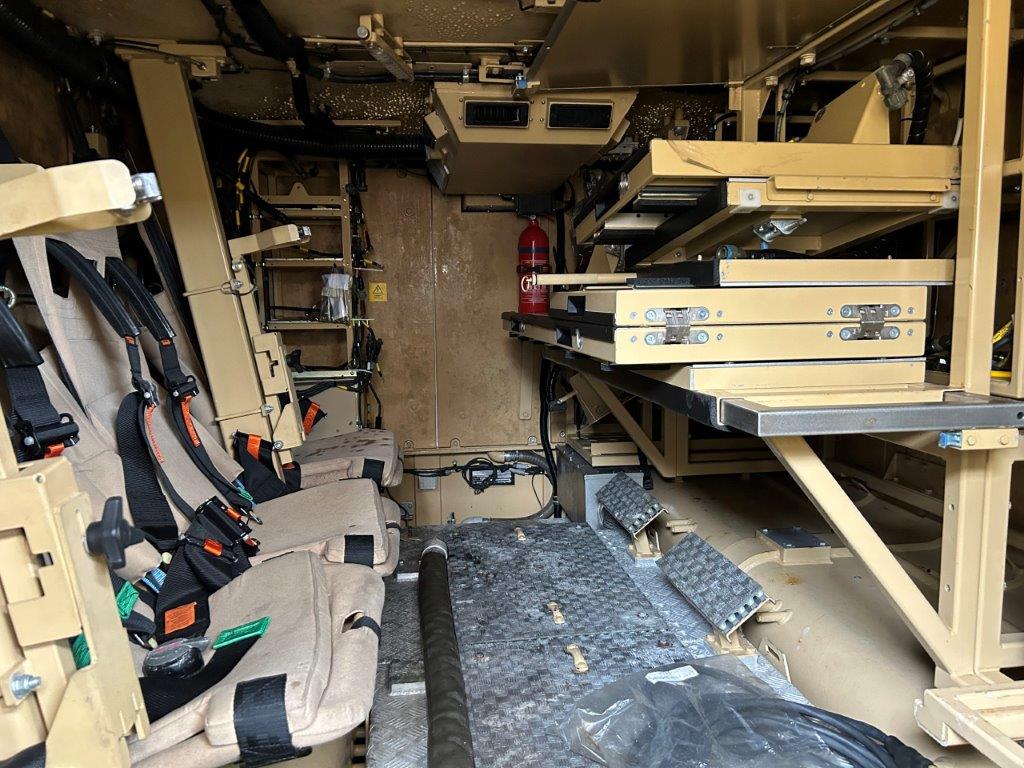

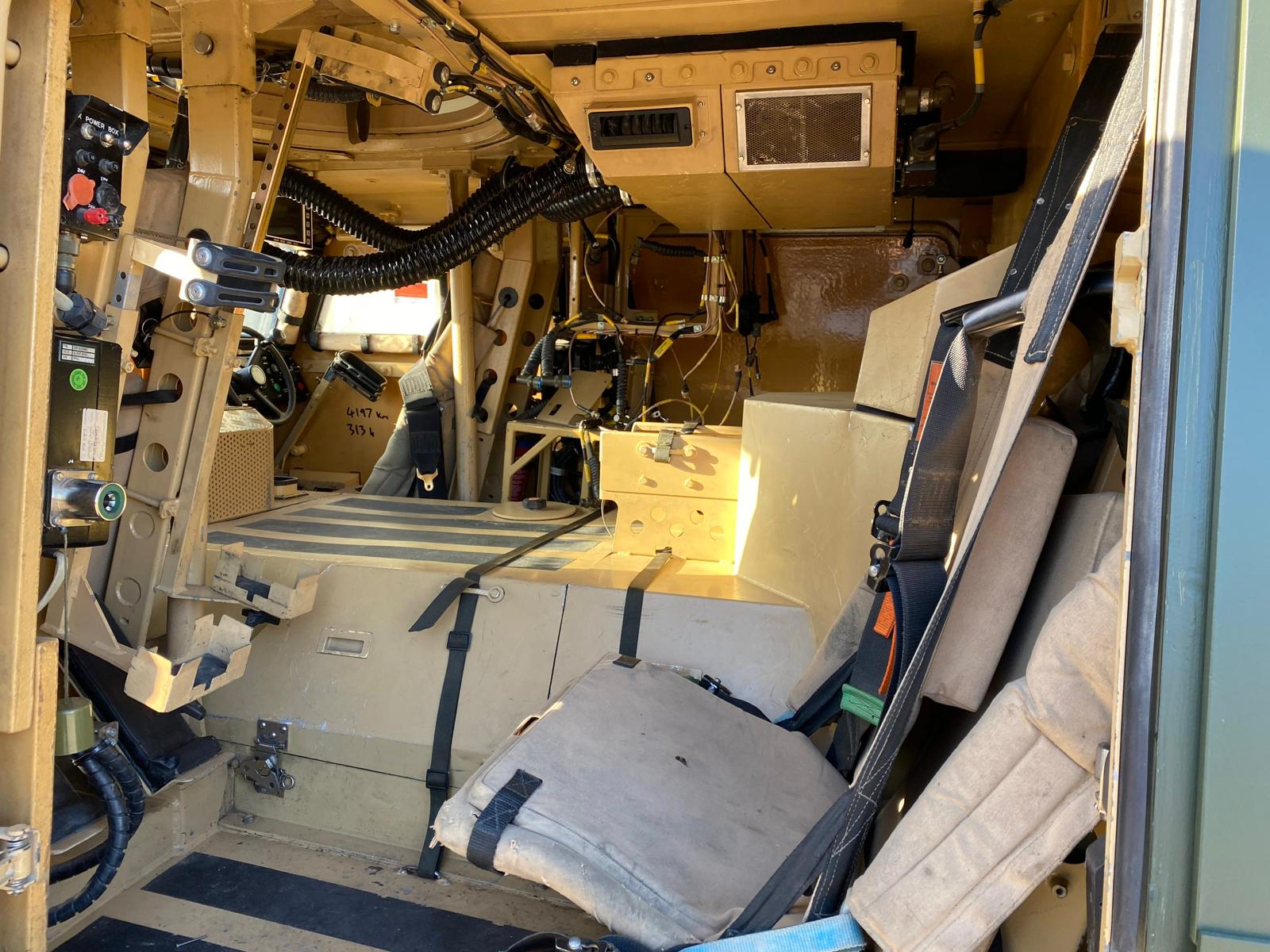

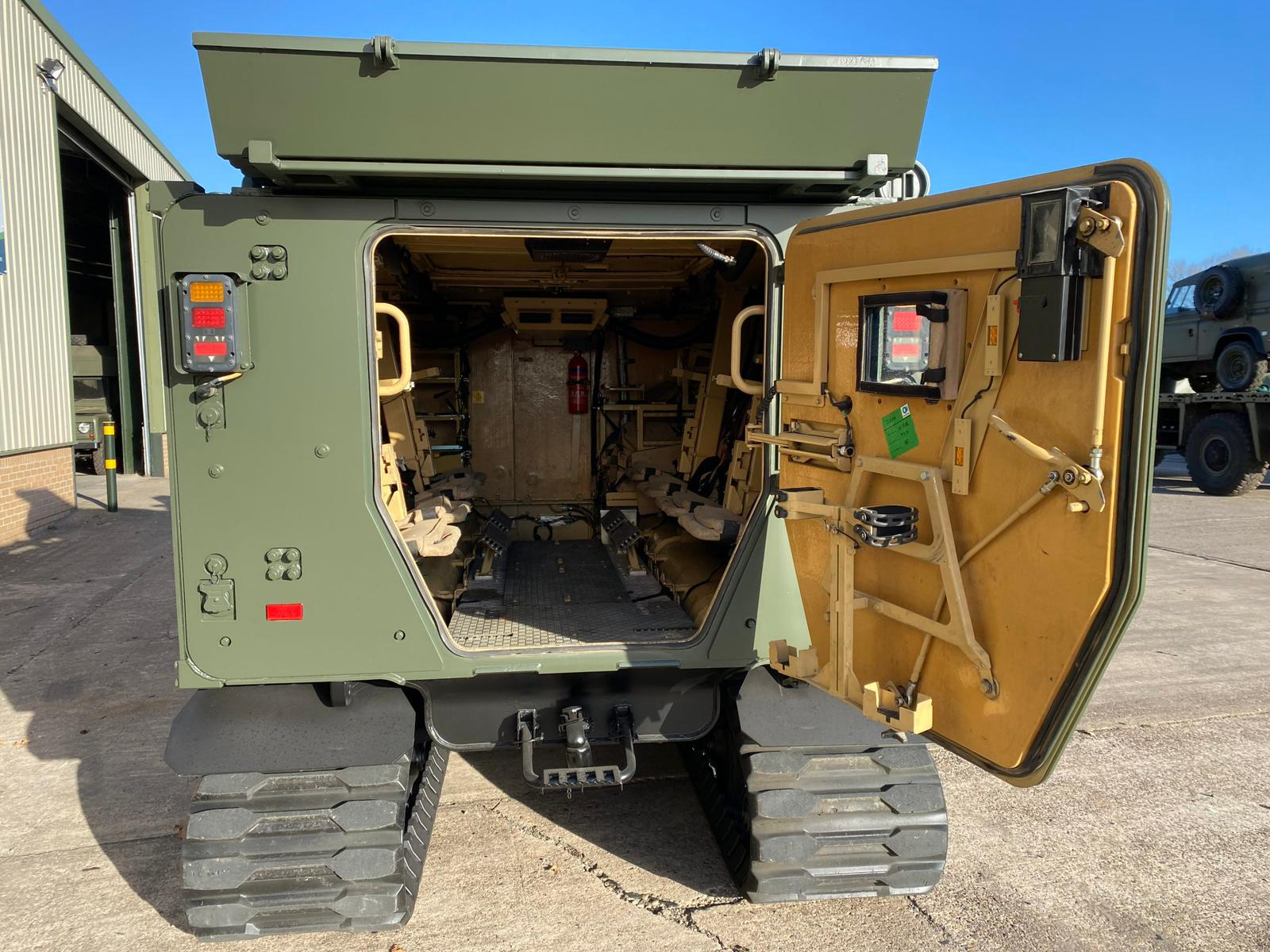

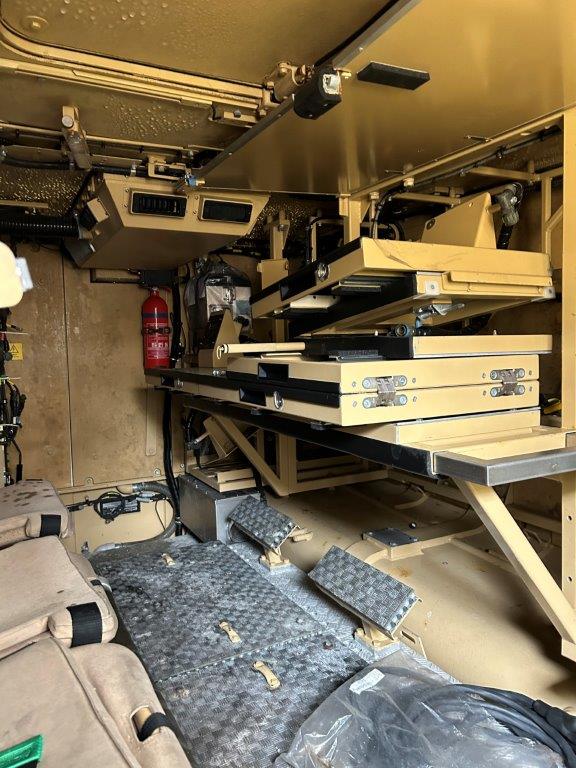

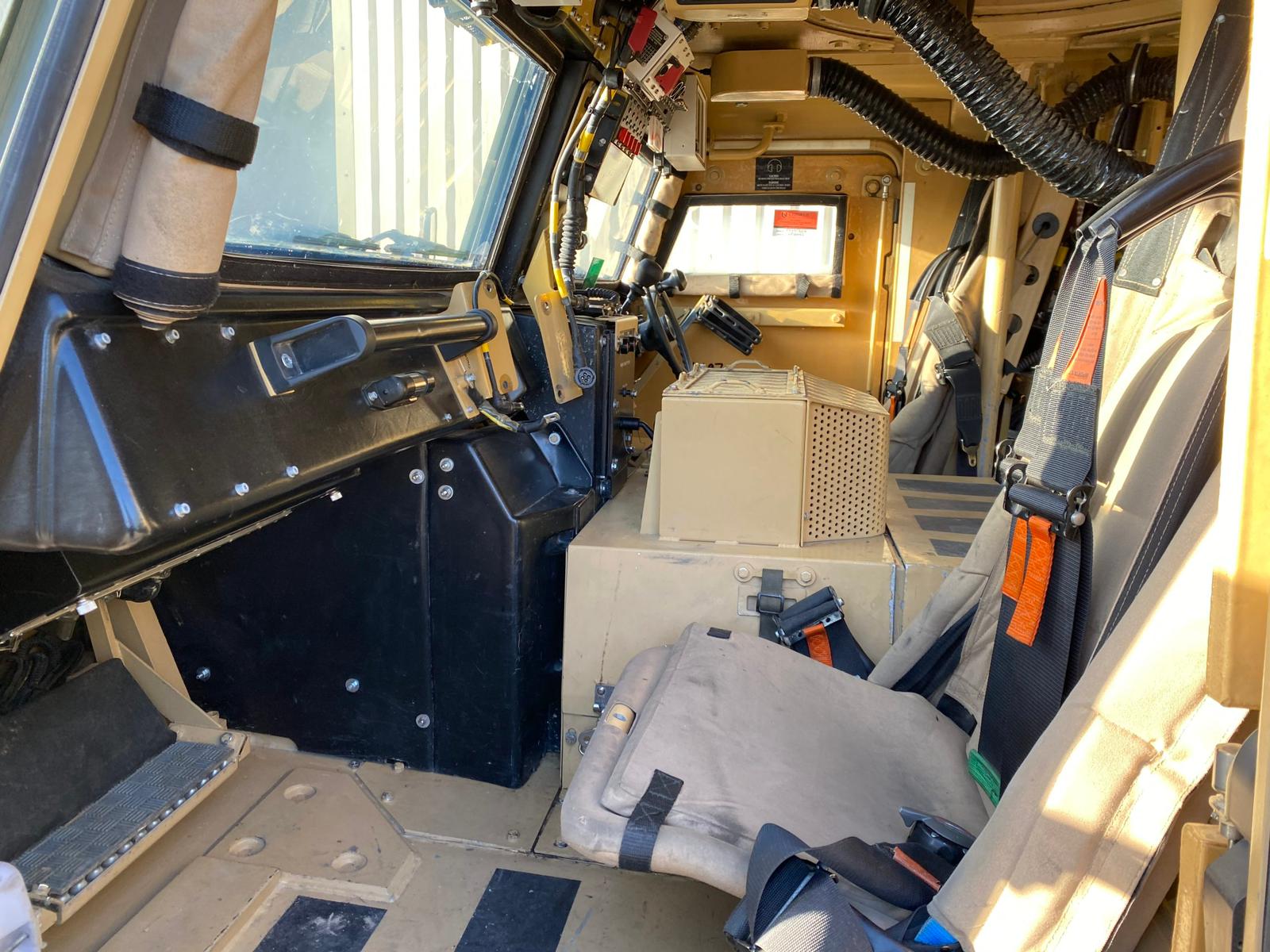

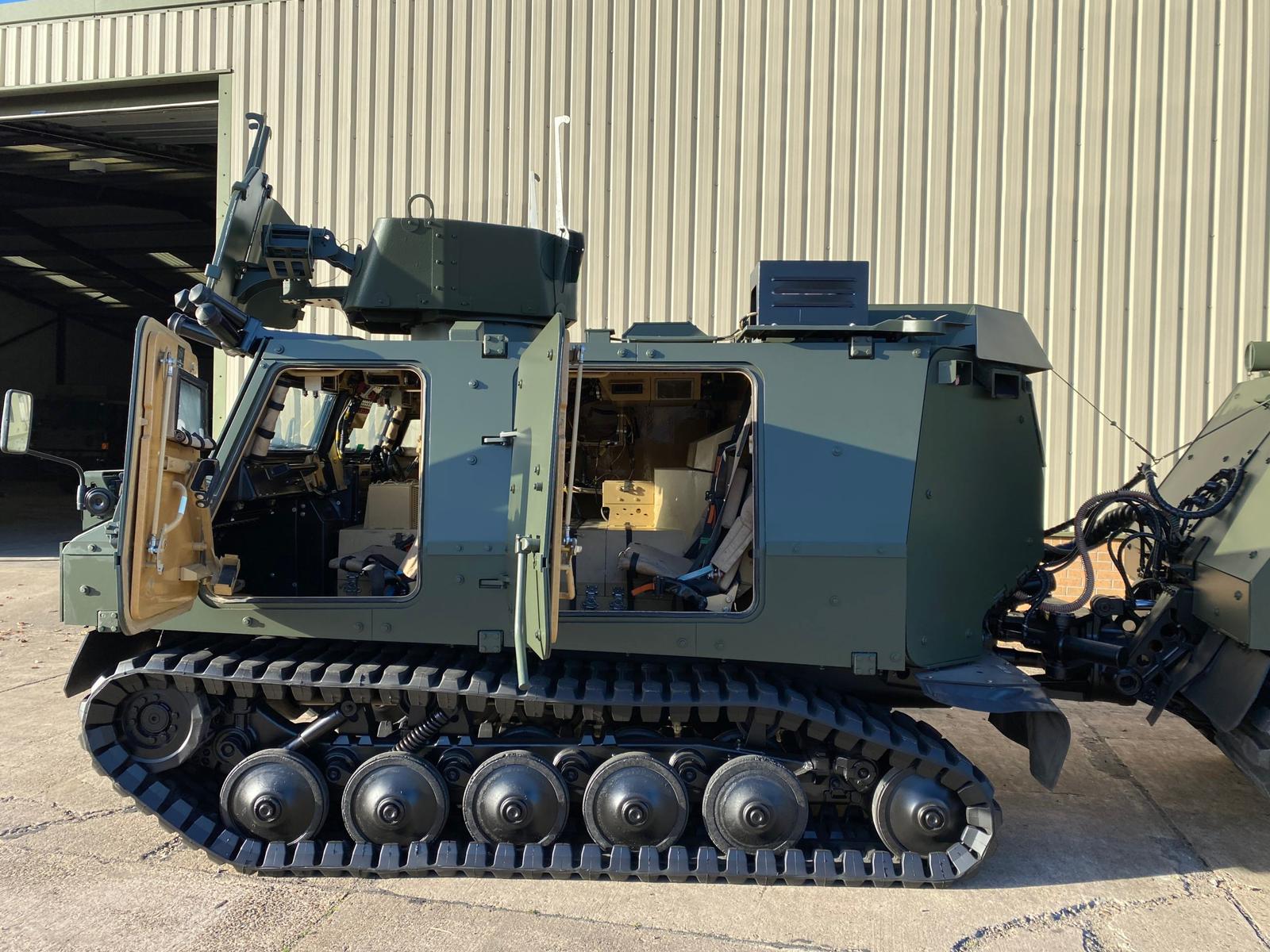

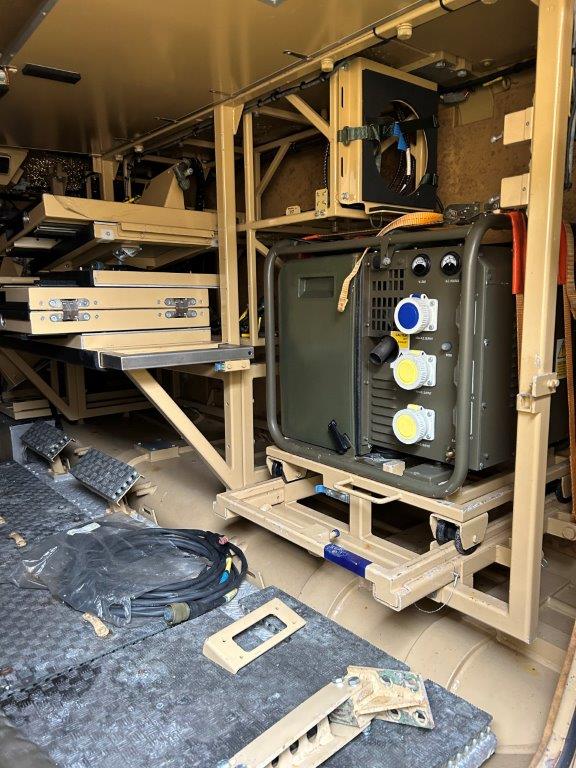

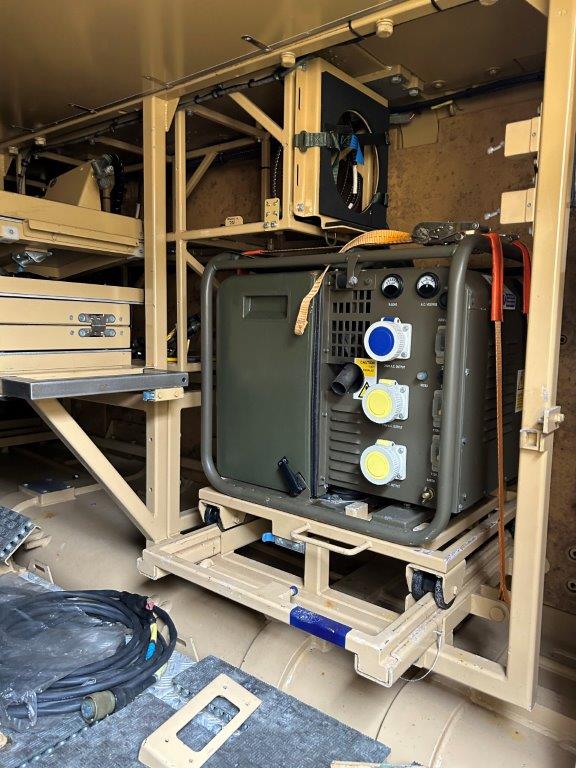

The front module of Command Variant (CV) have the same configuration as the troop carrier variant (TCV) with same number of crew. In the rear cabin there are four crew seats on the left side while on the right side is fitted with a sliding table and map board. A lightweight field generator is fitted capable of producing 2Kw of continuous power.

Body design - Front and rear module, high strength steel with protection system

Performance:

  • Cruising Range - 400 Km
  • Maximum road speed - 60 Km/hr
  • Fuel consumption - 1.10 litres/km
  • Maximum gradient - 60%
  • Maximum side slope - 30%
  • Maximum vertical obstacle - 0.8M
  • Trench - 1.5M
  • Steering Radius - 10M
  • Front towing attachment ( max towing load) 30 Tonnes
  • Rear towing pintle (max towing load) 30 Tonnes
  • Maximum fording depth 1.5M
  • Engine Type - Caterpillar C7 350 BHP, 6 cylinder, 4 stroke turbo charged
  • Transmission Type - Allison MD3500 fully Automatic 6 speed
  • Cooling system - Liquid and air cooled

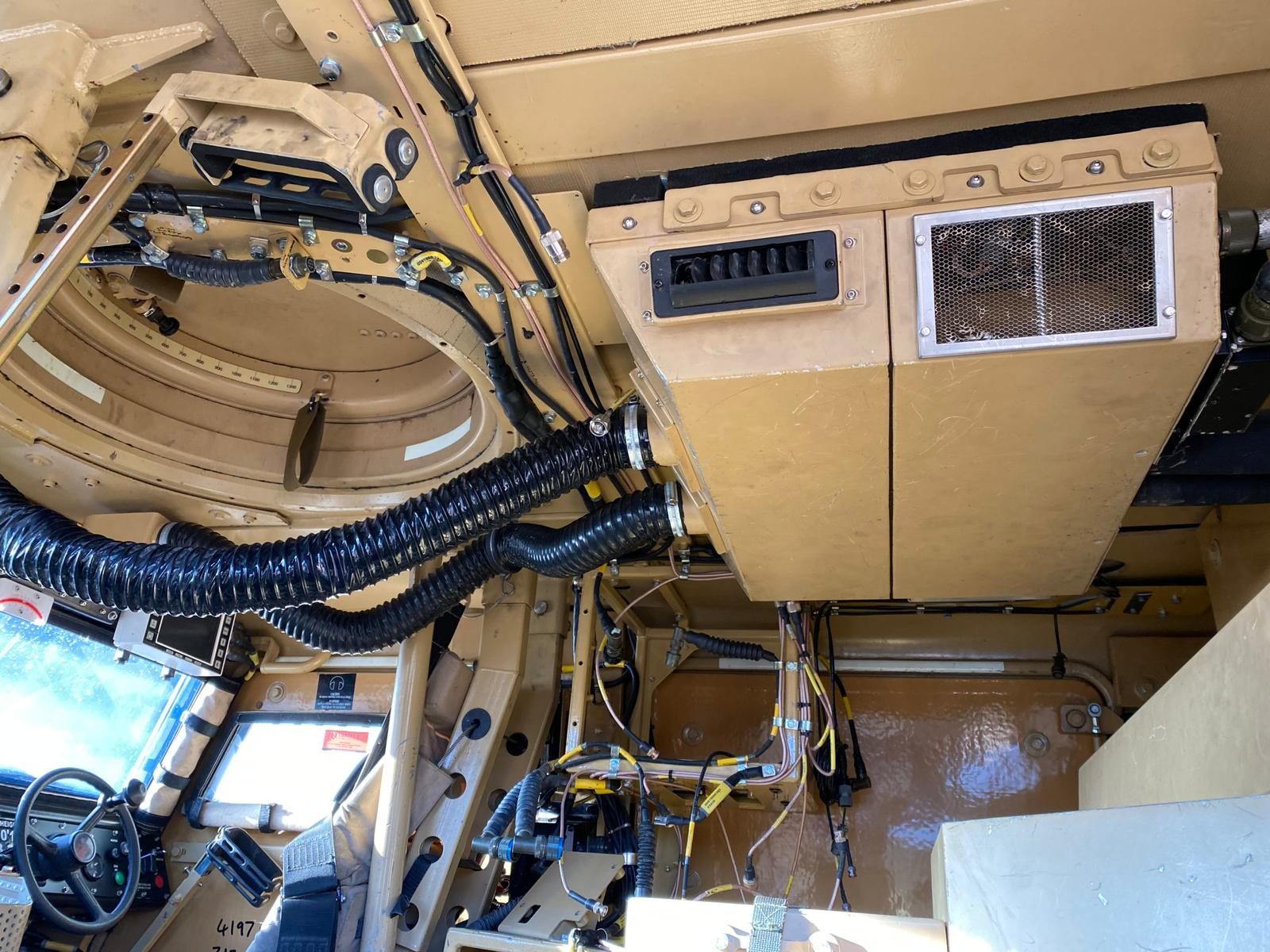

  • Air conditioning is provided for the front module

    A heating system is provided in the front and rear module designed to provide heating between 10-40 degrees

    These vehicles are one of the latest tracked armoured all terrain vehicles on the market today and are in excellent condition with some vehicles been reserve having never been operated Support, training and spare parts are available to offer the complete package These are available and offered subject to export licence and end user criteria

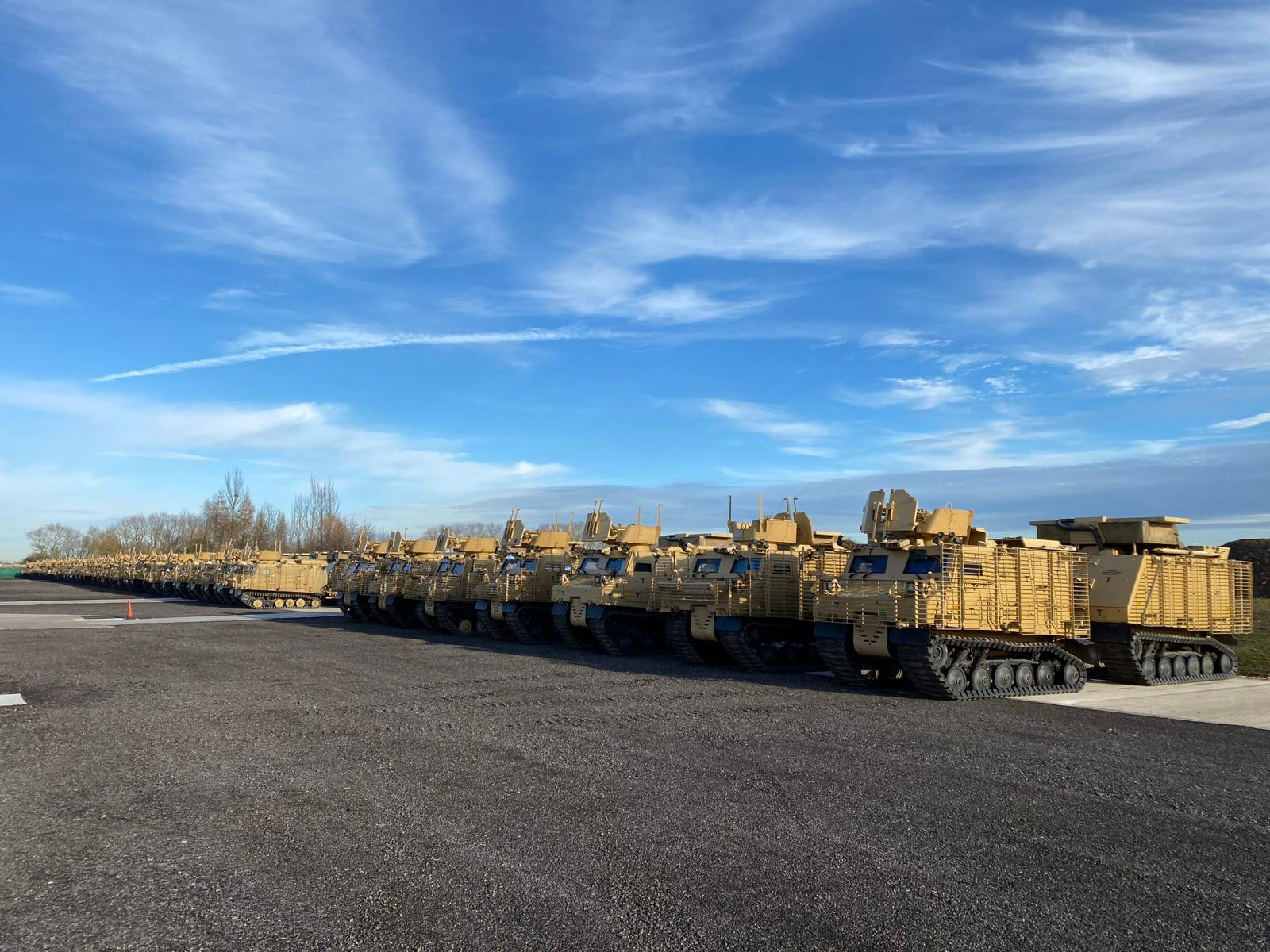

    We also have available in stock the Vehicle Recovery variant, Troop Carrier variant and Ambulance Variant totalling 75 vehicles as well as a full spares package

    Like on Facebook
    VIDEOS (if available)
    CATEGORY Armoured Fighting Vehicles (AFV's)
    MANUFACTURER ST Kinetics
    ENGINE Caterpillar C7 350 BHP 6 Cylinder Turbo Charged
    GEARBOX Allison MD3500 fully automatic 6 speed
    BRAKES

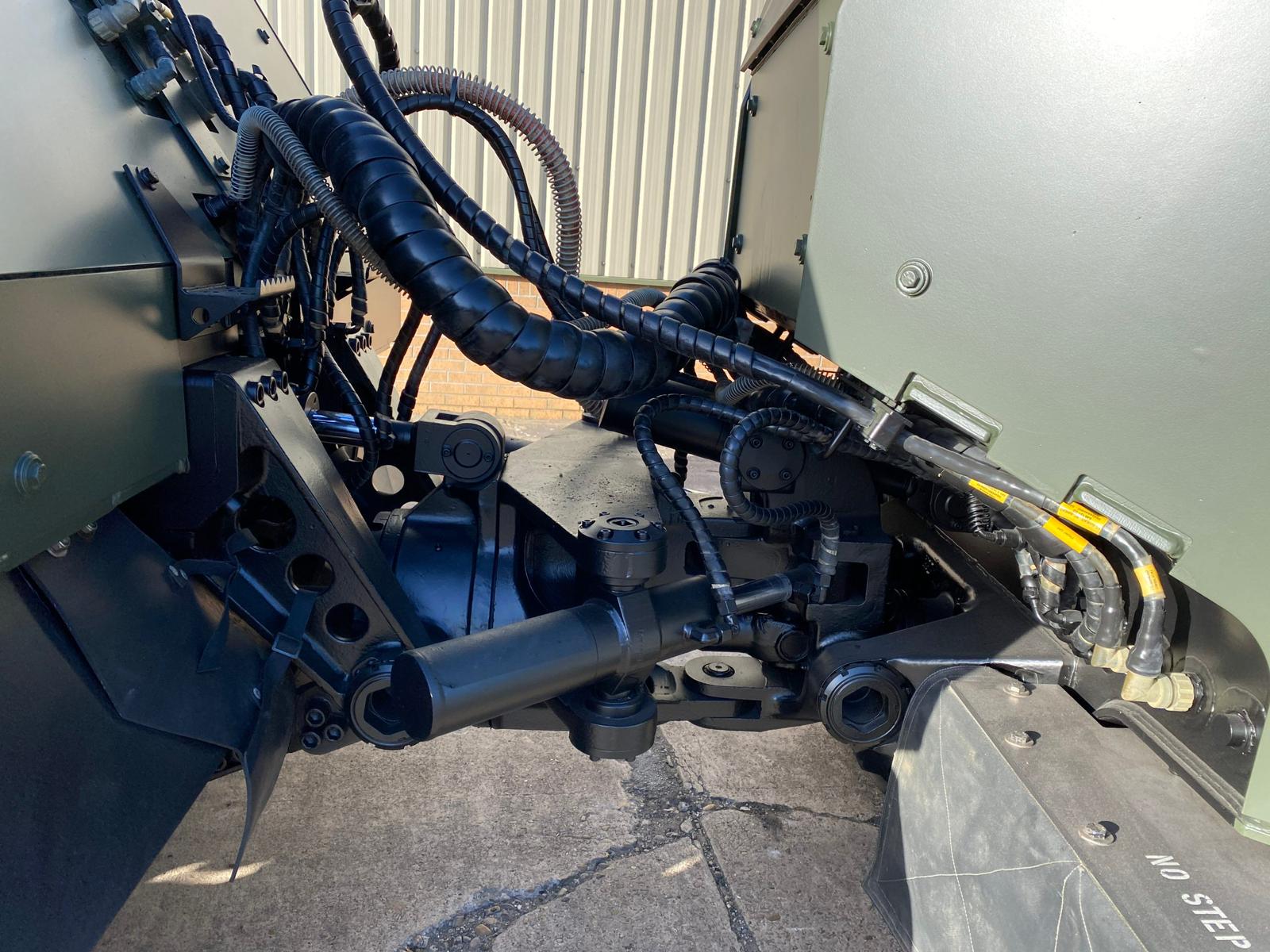

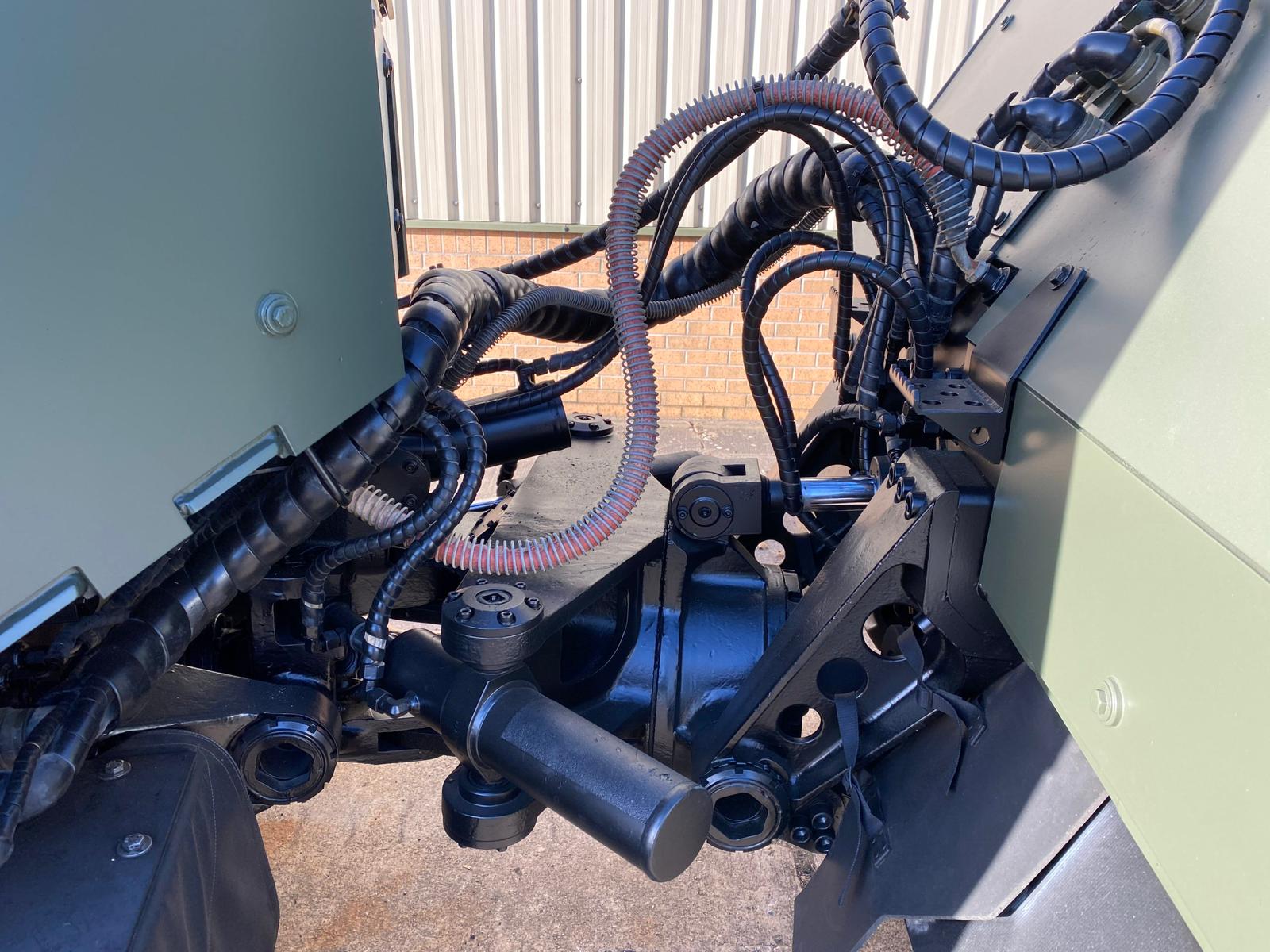

    STEERING Centre Point Articulation

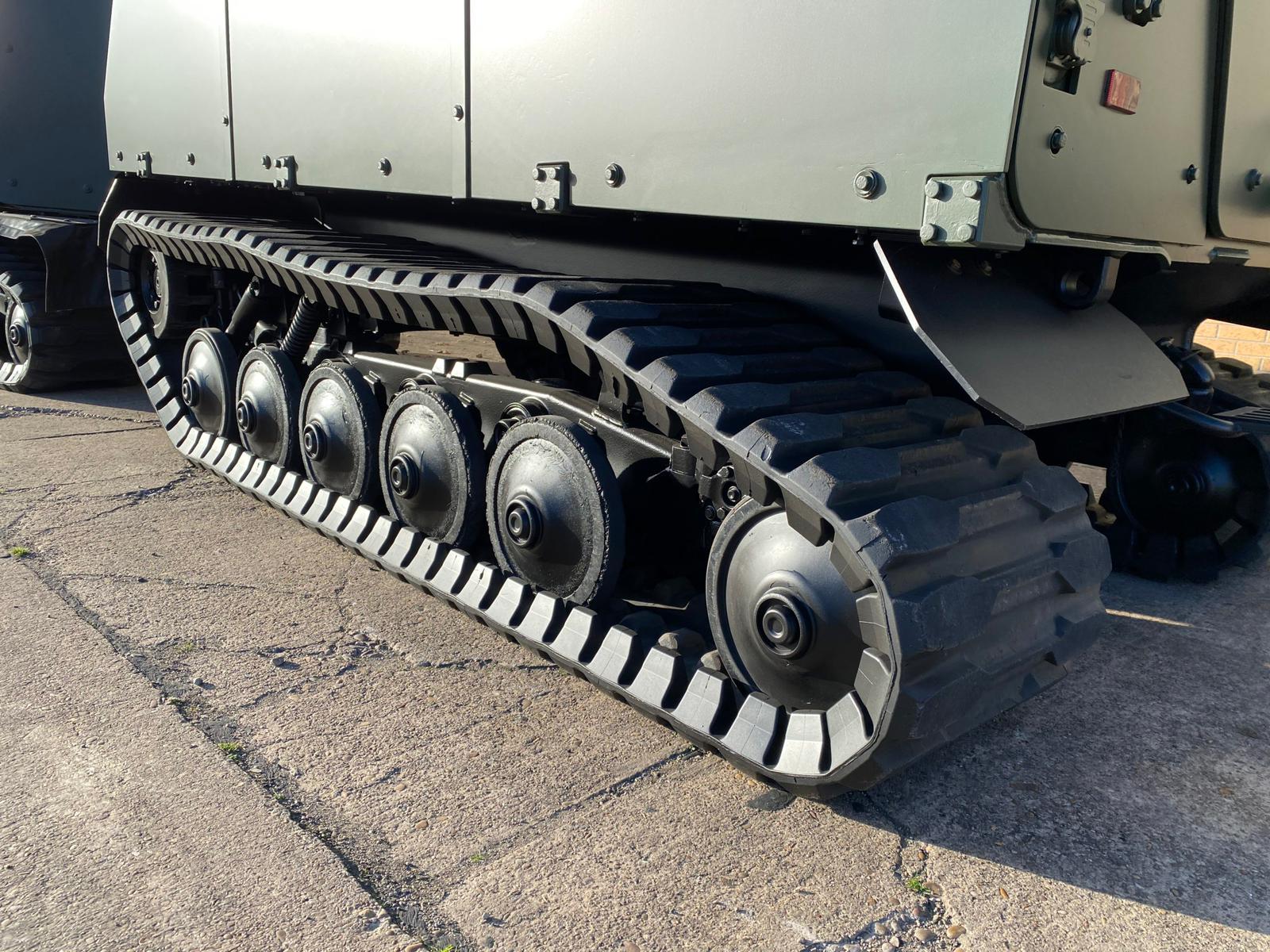

    TYRES Soucy Tracks and wheels
    MAXIMUM LOAD
    ELECTRICS 24 volts
    L x W x H 8.60M x 2.30m x 2.90m
    GROSS WEIGHT
    HOURS / MILEAGE
    DATE INTO SERVICE 2010-2011
    YEAR OF MANUFACTURE 2010-2011
    QTY AVAILABLE 0
    EXPORT REQUIREMENTS ...more SIEL Licence Required
    PRICE This email address is being protected from spambots. You need JavaScript enabled to view it.


    P h o t o G a l l e r y


    All prices qoted are GBP U.K. Pounds Sterling Ex. Works excluding VAT where applicable and shipping / associated costs.
    Vehicles advertised are subject to remaining unsold.
    All prices quoted are based on "per individual unit" purchased, any reductions on advertised price for multiple item orders is subject to negotiation and is conducted at the time of inspection or provision of LOI.
    For complete Terms & Conditions See Main Website
    Photo's shown above may represent a vehicle type rather than an actual vehicle, vehicles are available serviced and painted to customers preference

    An export licence may be required for items sold to customers outside of the U.K.
